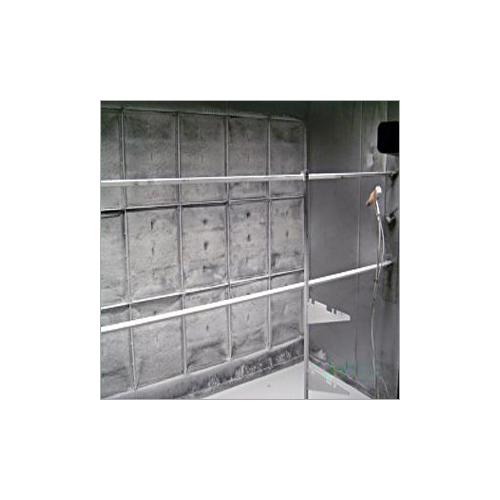

Multicyclone Powder Coating Booth

Name: Multicyclone Powder Coating Booth
Brand: MASTERFIELD SYSTEMS
Price: 150000 INR
Availability: InStock

Price 150000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Multicyclone Powder Coating Booth Specification

Machine Speed
8 m/min

Coating Format
Powder Coating

Min. Sheet Area
As per Component Size

Max. Sheet Area
2500 mm Width

Feeding Type
Manual or Conveyor-fed

Max. Coating Area
Up to 2.5 m Wide

Coating Type
Electrostatic Powder

Power Requirement
7.5 kW

Registration
Manual

Coating Transfer Method
Spray Electronically Charged Powder

Product Type
Multicyclone Powder Coating Booth

General Use
Industrial Powder Coating Applications

Material
MIld Steel

Type
Multi-Cyclone Booth

Weight (kg)
1200 kg (approx.)

Coating Speed
Up to 8 m/min

Coating Head
Manual/Automatic Powder Guns

Coating Width
Up to 2.5 m

Coating Material
Thermosetting/ Thermoplastic Powder

Computerized
No

Automatic
Yes

Control System
Digital/PLC Controlled

Power Source
Electric

Power Consumption
7.5 kW

Heating System
Not Applicable (Dry Booth)

Drive Type
Electric Motor Driven

Voltage
220 Volt (v)

Humidification System
Not Included

Dimension (L*W*H)
3000x1200x2600 mm Millimeter (mm)

Feature
Multi-cyclone Recovery, High Efficiency, Modular Design

Color
Industrial White & Blue

Operation Environment
Indoor

Lighting
Integrated LED Illumination

Recovery Efficiency
Over 98%

Suitable For
Metal Fabrication, Automotive, Appliances, General Industries

Compliance
Meets Industrial Environmental Standards

Exhaust Fan Capacity
5000-8000 CFM

Filtration System
Multi-cyclone Dust Recovery with Cartridge Filters

Solvent Usage
No Solvent Required

Noise Level
Below 75 dB(A)

Operator Safety
Emergency Stop Switches Provided

Booth Access Door
Front/Side Opening with Viewing Glass

Air Flow Velocity
0.5 - 0.7 m/sec

Booth Construction
Modular, Bolted Panels with Powder Coated Finish

Multicyclone Powder Coating Booth Trade Information

Minimum Order Quantity
1 , , Unit

Supply Ability
7 Units Per Month

Delivery Time
20 Days

About Multicyclone Powder Coating Booth

We are an eminent organization engaged in manufacturing and exporting Multicyclone Powder Coating Booth. It is widely used around the globe for coating purposes. These booths are capable of providing qualitative coating of various powders efficiently. Coating, from these booths provides abrasion resistance, corrosion resistance and resistance against high temperature which eventually increases the life of the coated product. Offered Converised Double Multicyclone Powder Coating Booth is easy to install and are thus highly demanded worldwide.

Product details

Booth Size	3000x1200x2600 mm
Power	3.5 kW
Voltage	220 V
Phase	Three Phase
Body Material	Mild Steel
Heating Mode	Electric
Frequency	50 Hz
Automation Grade	Automatic

Exceptional Filtration and Recovery Efficiency

Equipped with a multi-cyclone dust recovery system and cartridge filters, this booth ensures more than 98% powder recovery, enabling cost-effective and eco-friendly operations. Its superior air flow velocity and robust exhaust fan (5000-8000 CFM) maintain optimal working conditions while controlling particulate emissions.

Operator-Centric Safety and Visibility

Designed with emergency stop switches, integrated LED illumination, and viewing glass access doors, operator safety and visual control are prioritized. The booth's low noise level (under 75 dB(A)) and ergonomic access points provide a comfortable and secure work environment for manual or conveyor-based processes.

Modular Design and Versatile Applications

The modular, bolted panel construction with an industrial powder-coated finish allows for quick installation and flexible adaptation across production lines. Suitable for diverse industries, this booth supports large coating areas (up to 2.5m wide), adapting to various component sizes and maximizing productivity in indoor settings.

FAQ's of Multicyclone Powder Coating Booth:

Q: How does the multi-cyclone recovery system benefit powder coating operations?

A: The advanced multi-cyclone recovery system, combined with cartridge filters, recovers over 98% of oversprayed powder. This maximizes material usage, reduces waste, and lowers operational costs by enabling effective powder recycling within industrial environments.

Q: What industries can use the Multicyclone Powder Coating Booth?

A: This booth is suitable for metal fabrication, automotive, appliance manufacturing, and general industrial applications that require high-efficiency, solvent-free powder coating operations in indoor settings.

Q: When is it necessary to perform maintenance on the filtration system?

A: Routine maintenance, including cleaning or replacing cartridge filters, should be performed regularly based on operation hours and dust load indicators. Following the manufacturer's suggested intervals helps maintain optimal recovery efficiency and prolonged equipment lifespan.

Q: Where should the powder coating booth be installed?

A: The booth is designed for indoor environments, ensuring protection from weather elements and efficient dust containment. Install it on a stable surface with access to a 220V power supply and proper ventilation for best performance and compliance with environmental standards.

Q: What process does the booth use for powder application and recovery?

A: Powder is applied via electrostatic spray guns (manual or automatic), and excess powder is captured by the multi-cyclone dust recovery system with cartridge filters. No solvents are needed, making the coating process environmentally friendly and safe.

Q: How does operator safety get ensured in the booth?

A: Operator safety is prioritized through features such as emergency stop switches, integrated LED lighting for clear visibility, low operational noise, and access doors with viewing glass. These elements collectively create a safe and efficient working environment.

Q: What are the main advantages of the modular design?

A: The modular, bolted-panel design allows for quick assembly, easy expansion or relocation, and hassle-free maintenance. This flexibility suits dynamic industrial layouts, helping businesses adapt to changing production needs with minimal downtime.
